Horizontal fan coil radiators hydronic water cooled HVAC fcu ceiling mount fan coil units

Product Paramenters

parameter	Model FCU-	Motor Power	Outlet static pressure	Air volume range(m³/h)	Cooling Ca. (kw)(Water in 7°C)	Heating Ca. (kw)(Water in 45°C)	Heating Ca. (kw)(Water in 60°C)	Water Flow(m³/h)
	02EC	60W	free static pressure	360	1800	2057	3487	0.4
	03EC			545	3264	3252	5274	0.59
	04EC			724	3974	4148	6775	0.73
	05EC			900	4618	5419	8652	0.81
	06EC			1090	5754	6199	11173	1
	08EC			1440	7448	8110	13088	1.2
	10EC			1750	9193	9737	15976	1.57
	12EC			2140	10849	11004	17701	1.86
	14EC			2490	12670	12823	21188	2.19

Additional information

Product Video

Product descriptions from the supplier

Our company’s horizontal concealed fan coil units are all equipped with pressure maintaining valves. At the same time, the surface cooler of the upgraded horizontal concealed fan coil unit adopts antibacterial treatment, making it cleaner and hygienic. The upgraded product is equipped with ABS fan as standard. Wheel, equipped with DC brushless motor, runs more quietly

Product Paramenters

parameter	Model FCU-	Motor Power	Outlet static pressure	Air volume range(m³/h)	Cooling Ca. (kw)(Water in 7°C)	Heating Ca. (kw)(Water in 45°C)	Heating Ca. (kw)(Water in 60°C)	Water Flow(m³/h)
	02EC	60W	free static pressure	360	1800	2057	3487	0.4
	03EC			545	3264	3252	5274	0.59
	04EC			724	3974	4148	6775	0.73
	05EC			900	4618	5419	8652	0.81
	06EC			1090	5754	6199	11173	1
	08EC			1440	7448	8110	13088	1.2
	10EC			1750	9193	9737	15976	1.57
	12EC			2140	10849	11004	17701	1.86
	14EC			2490	12670	12823	21188	2.19

Product Features & Advantages

Antibacterial condenser

The horizontal concealed fan coil condenser adopts antibacterial treatment. Different from the previous blue fin condenser, the condenser is overall burgundy. The antibacterial treatment technology makes it difficult for bacteria to breed and is cleaner and hygienic.

Pressure maintaining valve

Horizontal concealed fan coil units are equipped with pressure maintaining valves to ensure the air tightness of the condenser and effectively prevent liquid leakage when users receive the product.

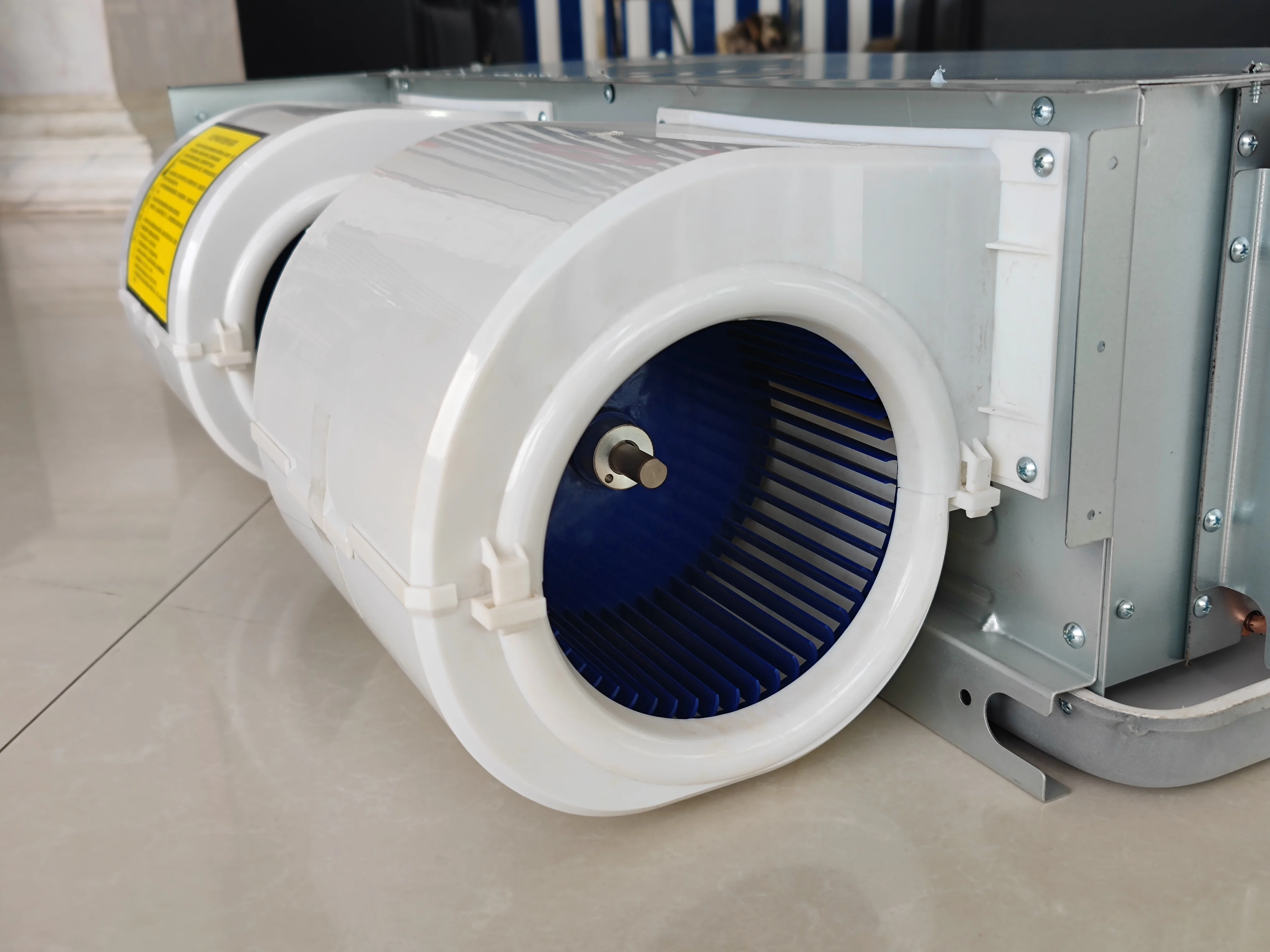

Brushless DC motor

The upgraded horizontal concealed fan coil unit is equipped with a brushless DC motor as standard, and is equipped with an ABS wind wheel during operation to achieve ultra-quiet and large air volume effects.

Installation & application

Horizontal concealed fan coil units have a wide range of installation uses and are often used for cooling and heating in
engineering projects. It has nine models that can be shared and selected. Its high cost performance is deeply loved by the
majority of engineering companies.

Company profile

Baoding Yuexin Heating And Cooling Equipment Manufacturing Co., Ltd.

is a professional manufacturer of cooling and heating equipment integrating R&D,manufacturing, sales and after-sales service. It mainly produces fan coil units, water temperature air conditioners,The hot air blower, water conservancy module and air source heat pump cover an area of more than 26,600 square meters (40 acres) and a construction area of 17,000 square meters. The company takes “energy saving and environmental protection” as its mission and is committed to Use technology to save energy in our world, save money and reduce expenses for our customers.

National Comprehensive Enthalpy Difference Performance Laboratory of Air Conditioning Units

The company’s local factory has a national standard laboratory. Every data indicator of the products sold is accurate data obtained through rigorous testing to ensure that the products can meet national standards and meet customer needs, and truly achieve Let the data speak for itself and don’t make false propaganda.

Salt spray testing laboratory

The purpose of this laboratory is to test the corrosion resistance of the outer surface of the product. Put the product to be tested into the machine, add prepared salt water to simulate the salt spray environment, and adjust the anti-corrosion treatment of the product appearance after a week of observation.

Semi-anechoic laboratory

The purpose of the experiment is to detect the actual noise value of the product in a quiet environment. In order to ensure a good user comfort experience, all data are true and valid, and are controlled within the noise decibel suitable for human body acceptance, in line with national standards.

Operating power monitoring wall

The purpose of the construction is to run the machine 24 hours a day without interruption for one year to obtain actual power and electricity consumption data, provide real and effective data, and reflect the excellent characteristics of energy saving.

Product production workshop
