Wall Mounted Fan Coil Unit

Wall-mounted fan-coil unit for home use.

Heating and cooling

Additional information

Air Flow

380-670 m3/h

Voltage

220v

Noise

32-41db

Cooling Capacity

2.4kw-4kw

Heating Capacity

4.4kw-6kw

Product Video

Application

Nowadays, almost every family uses a wall fan coil air conditioner, which is the most important household appliance in large household life. Without it, we will be very cold in winter and very hot in summer. It is an indispensable part. We can’t live without a high wall-mounted air conditioner, which has an exquisite appearance, wall-mounted installation, does not occupy space, and can be used for both heating and cooling.

This product is wall mounted fan coil, that is suitable for various places such as household houses, commercial offices, and halls, and this wall fan coil unit for homes is efficient and energy-saving.

The installation method of wall-mounted fan coil wall cabinet has an exquisite appearance and ultra-quiet effect, which can be well adapted to the installation of a bedroom; Wide-angle and multi-directional air supply of this household fan coil can meet the temperature of different places and is suitable for small offices and families.

Working principle

The function of the wall-mounted fan coil unit is to cool or heat the indoor air through the condenser, and then send it into the room, so as to reduce or increase the indoor air temperature to meet people’s comfort requirements.

Wall-mounted fan coil unit usage scenarios
Wall-mounted fan coil unit usage scenarios

Product details

Wall Mounted Fan Coil Unit Plastic Enclosure Details
Wall Mounted Fan Coil Unit Plastic Enclosure Details







Shell: ABS injection molding, strong and beautiful, not easy to change color, the whole machine is light and convenient







Wall-mounted fan coil unit usage scenarios
Wall-mounted fan coil unit usage scenarios

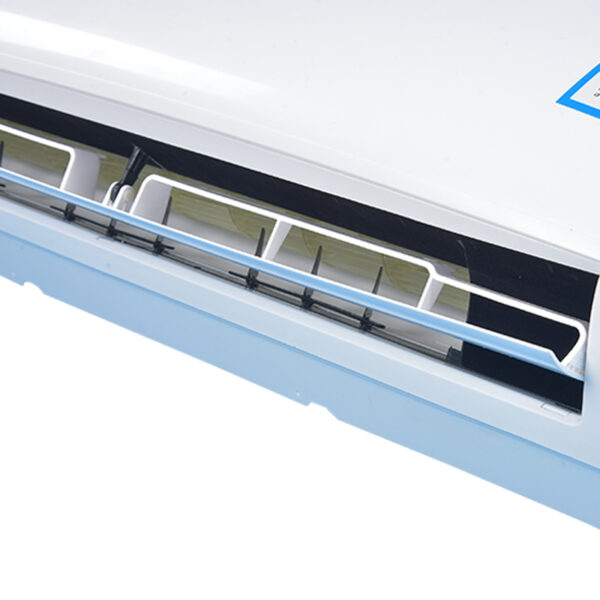

Wall-mounted fan coil unit: Lightweight fuselage design, hanging in the upper space of the wall, occupying little space and not disturbing the indoor environment.

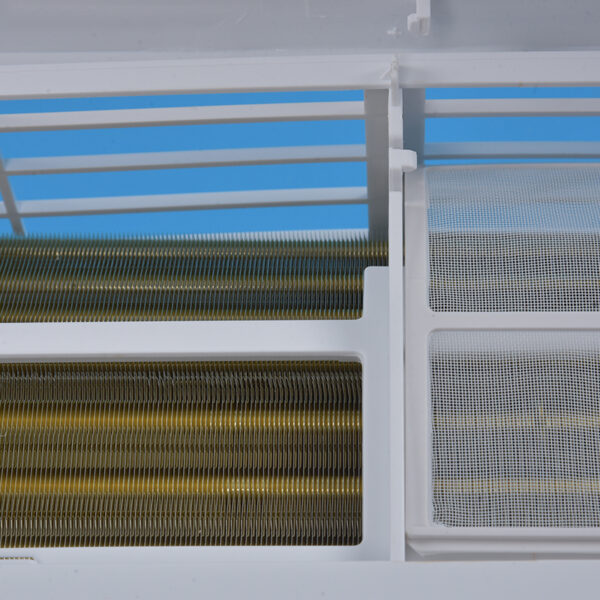

The pull-out filter screen is easy to disassemble and clean, saving time and labor, and the dust removal operation is simpler.

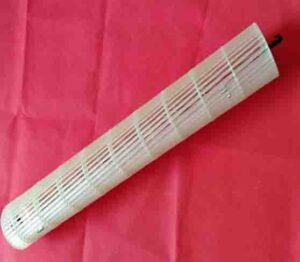

Turbine: ABS material, tubular turbine, large air volume, low noise, durable and not easy to weather.















Motor: plastic sealed 3-speed motor, running smoothly and ultra-quiet.













Condenser: 0.45mm thick copper tube, φ7 copper tube, high-density hydrophilic aluminum foil, multi-inlet and multi-outlet high-efficiency heat exchange. C-shape increases windward area.



Control panel: dark display on the panel, intelligent temperature control system, unique anti-cold air design, no operation when the heating water temperature is lower than 35℃, with “self-protection” function. When the water temperature is higher than 70℃, the forced cooling function will start automatically.

engineering data

Technical parameters of household high wall-mounted fan coil unit
product name High wall-mounted fan coil unit
model YXLP
force 18w
Air flow 380-670 M3/hour
cooling capacity 2.4kw-4kw
Heating capacity 4.4kw-6kw
voltage 220v
frequency 50HZ
noise 32-41dB
weight 9.8kg
Applicable area 20-30square meter
motor 3-speed motor
copper 28
Copper diameter 7 mm
Coil size C型675mm
waterway Five in and five out.
measure 850*265*210mm
aluminium foil 0.105mm, gild
Fin spacing 1.5mm
Shell material HIPS panel, flame retardant ABS for electronic control part
turbine ABS+AS+GF
control panel LCD

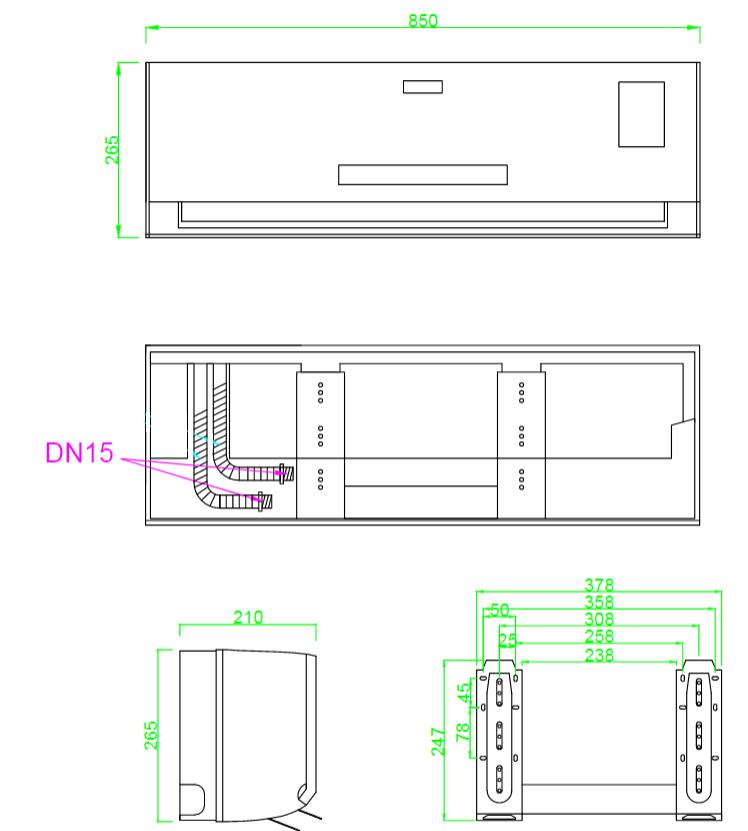

drawing
