Universal Exposed Fan Coil Unit

Low noise, easy to install.

Energy Saving and environmental protection



Additional information

Power

36W-221W

Noise

37dB(A)-52dB(A)

Air Flow

340m³/h-2380m³/h

Cooling Capacity

1.8KW-12.6KW

Heating Capacity

2.7KW-18.9KW

Product Video

Application

With fan coil units gradually entering people’s lives, in order to meet people’s various needs, the types of fan coil units tend to diversify. Some well-decorated buildings, or customers who don’t want to be renovated again. If you want to install fan coil units, it is very convenient to choose this type of universal exposed fan coil units.

This fan coil can be installed both as floor standing fan coil unit and ceiling suspended fan coil unit. Equivalent to the fan coil unit “wearing” a beautiful dress, which can be installed outside the ceiling of interior decoration. The HVAC project can be reconstructed without affecting the indoor environment, and the construction is simple and quick.

Working Principle

The function of fan coil unit is to cool or heat indoor air or outdoor mixed air through surface cooler and then send it into the room, so that the indoor air temperature can be lowered or raised to meet people’s comfort requirements. Cold (hot) medium water in the coil pipe is supplied centrally by the machine room.

  • Primary filtration, filtering impurities in the air
  • The motor drives the fan to rotate to absorb indoor mixed air
  • Circulate cold/hot water inside the unit
  • Heating/cooling the passing air
  • Send hot air or cold air into the room

Product Details

  1. Advantages of sheet metal shell: The shell sheet metal is all made of flower-free and oil-free hot-dip galvanized sheet, which is clean and tidy with high durability.
  2. Advantages of sheet metal processing technology:





The perforated parts of sheet metal copper pipes on both sides of the condenser are stretched to protect the copper pipes from being scratched. Stretching technology is added to the installation part of water collecting head to increase the strength of sheet metal and avoid screwing the water collecting head to damage the pipeline during installation.









The sheet metal shell is painted with high gloss, which is beautiful and durable.









3.Material advantages of condenser:





The fan coil adopts hydrophilic aluminum foil and pure copper tube, the same as those of first-line brands.









4.Advantages of condenser processing technology



Aluminum foil: fully automatic fin grinding tool, fin spacing of 2mm.

Copper pipe: automatic pipe bender to ensure the stability of copper pipe thickness.

Tube expanding: vertical tube expanding machine, can keep the copper thickness unchanged.

Water collecting head: the waterway is designed according to the national water resistance standard.





5.Advantages of fan and motor section







Fan: galvanized volute with strong corrosion resistance and high stability.











Motor:Jiangsu Liwen Motor is selected for the standard type with thickened shock absorption on both sides and stable operation.













Panel:The stiffening process of the motor plate increases the strength of the sheet metal, the bending part is stiffened longitudinally, and the surrounding reinforcement ribs are added to the motor mounting hole, which greatly improves the stability of the motor.







6.Advantages of air inlet and outlet:







The air outlet is made of abs material, which is exquisite in appearance, windproof and anti-condensation during cooling.

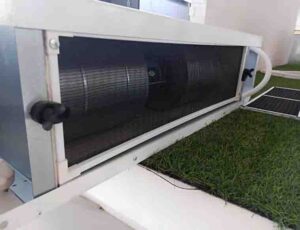

The filter screen at the air inlet of fan coil is fixed with rotary buckle, which is convenient for disassembly and installation during cleaning.





Technical Data

Model FP34 FP51 FP68 FP85 FP102 FP136 FP170 FP204 FP238
Air Flow    CMH 340 510 680 850 1020 1360 1700 2040 2380
Cooling Capacity    W 1800 2700 3600 4500 5400 7200 9000 10800 12600
Heating Capacity   W Water inlet temperature 60℃ 2700 4050 5400 6750 8100 10800 13500 16200 18900
Water inlet temperature 45℃ 1800 2700 3600 4500 5400 7200 9000 10800 12600
Power   W 12pa 36 50 60 74 93 130 147 183 221
30pa 43 57 70 84 105 151 169 206 245
50pa 48 64 81 97 114 169 204 243 291
Noise   dB(A) 12pa 37 39 41 43 45 46 48 50 52
30pa 40 42 44 46 47 48 50 52 54
50pa 42 44 46 47 49 50 52 54 56
Water Resistance  kpa 30 30 30 30 40 40 40 40 50
FCEER

w/w

12pa 46 49 54 54 51 49 53 51 48
30pa 39 43 47 49 45 43 47 46 44
50pa 35 39 41 43 42 38 40 40 38
FCCOP

w/w

60℃ 12pa 68 73 81 82 76 73 79 77 72
30pa 58 65 70 73 68 64 70 69 66
50pa 53 59 61 64 63 58 60 60 57
45℃ 12pa 46 23 54 54 51 49 53 51 48
30pa 39 20 47 49 45 43 47 46 44
50pa 35 18 41 43 42 38 40 40 38
Technical Parameter of Unversal Exposed Fan Coil Unit(Floor Standing or Ceiling Suspended)
Model FP34 FP51 FP68 FP85 FP102 FP136 FP170 FP204 FP238
Motor Power   W 25 40 40+40 50+50
Number of Motor 1 2
Number of Fan 1 2 3 4
Air Outlet Pressure 12pa
Water Inlet Temperature(cooling) 7
Water Inlet Temperature(heating) 60
Coil Length   mm 450 580 650 760 900 1100 1350 1550 1750
Width   mm 200
Thickness  mm 65
Package Length   mm 800 945 990 1110 1270 1460 1690 1890 2070
Width   mm 560
Thickness  mm 250

Drawing

Model FP34 FP51 FP68 FP85 FP102 FP136 FP170 FP204 FP238
A(length of the unit) mm 790 940 980 1100 1260 1450 1680 1880 2070
B(length of air outlet) mm 470 620 660 780 940 1130 1360 1560 1750
C(distance of the hanging hole) mm 513 665 705 825 985 1175 1405 1605 1795
Height(with legs) mm 555
Height(without legs) mm 640
