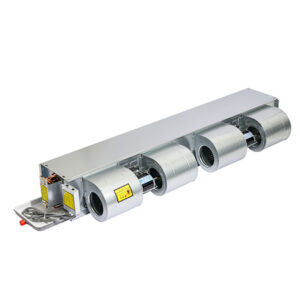

Horizontal Fan Coil Unit

Product Details

• Shell: 1.0mm thick, oil-free hot-dip galvanized steel sheet
• Motor: First-line brand Yongan Motor Selected
• Fan: 0.6mm hot-dip galvanized volute with enlarged blades
• Condenser: high-density hydrophilic aluminum foil, 0.35mm thick φ9.52 pure copper tube
• Drain pan: 0.8mm high-gloss sprayed steel plate, 7mm rubber, and plastic insulation





Are you worried about whether my products meet the export requirements of various countries?
The horizontal concealed fan coil units produced by YESNCER have been exported to dozens of countries.
Our products are used in households, large construction sites, offices, shopping malls, and many other nationally marked buildings.
Among them, Turkmenistan, Pakistan, France, Norway, Colombia, and Italy all have stable customers who have cooperated for more than 3 years. About 50 million of my fan coil units are imported every year.
If you need a special certificate, I can handle the certificate properly before delivery. If the delivery of the goods is delayed due to certificate problems and affects your project progress, I will bear all the costs.





Are you worried that I am not a fan coil unit manufacturer? Worried about the quality of my product?
YESNCER was established in 1986. Due to the limitation of the webpage, it cannot show the whole picture of the production workshop of more factories.

It’s okay, tell me your email address, and I can send you more pictures and videos. In addition, it supports online factory inspection. You can send me a video at any time, and I will show you the production workshop and assembly workshop online.
All YESNCER fan coil units are guaranteed for 5 years. If there are quality problems during use, I will give you a full refund and compensate you for all losses.
I am confident that my products will win your approval with quality.
From sheet metal raw materials, DC brushless motors, pure copper tubes, and hydrophilic aluminum foil, there are 89 raw material procurement standards, 235 semi-finished product inspection standards, and 23 finished product inspection indicators.
Only when each item is met will it be shipped to you.





Product Features and Advantages of the horizontal fan coil unit

Advantages of sheet metal shell: The shell sheet metal is all made of flower-free and oil-free hot-dip galvanized sheet, which is clean and tidy with high durability.



Advantages of sheet metal processing technology:

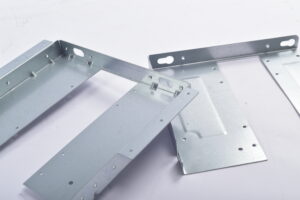

1. Longitudinal stiffener technology is added to the sheet metal shell of the water cooling section to increase sheet metal strength. The screw hole is stretched and plated, and the sheet metal connection is firmer.











2. The perforated parts of sheet metal copper pipes on both sides of the condenser are stretched to protect the copper pipes from being scratched. Stretching technology is added to the installation part of water collecting head to increase the strength of sheet metal and avoid screwing the water collecting head to damage the pipeline during installation.





Material advantages of condenser





The horizontal fan coil unit adopts hydrophilic aluminum foil and pure copper tube, the same as those of first-line brands.









Advantages of condenser processing technology

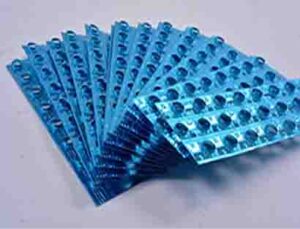

Aluminum foil: fully automatic fin grinding tool, fin spacing of 2mm.

Copper pipe: automatic pipe bender to ensure the stability of copper pipe thickness.

Tube expanding: vertical tube expanding machine, can keep the copper thickness unchanged.

Water collecting head: the waterway is designed according to the national water resistance standard. (advanced type is made of brass forging, which is more strong and more durable.)



Insulation material for fan coil unit machine

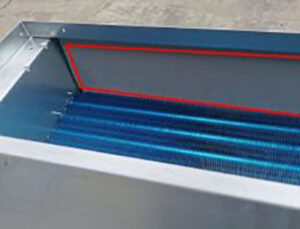

The front cover of the standard-type horizontal fan coil unit condenser is integrally pasted with 7mm rubber and plastic insulation material, which plays a role in heat preservation when heating. It prevents the generation of condensate water when cooling.

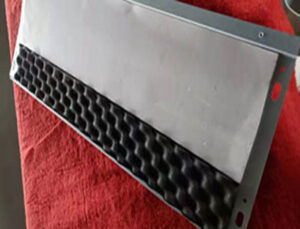

Advanced-type fan coil unit machines are pasted with tower-shaped silencing cotton. Experimental results show that silencing cotton can effectively reduce 3-5 dB noise.











Advantages of fan and motor section







Fan: galvanized volute with strong corrosion resistance

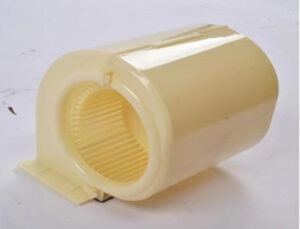

ABS fan: noise reduction 3-5db.











Motor： Jiangsu Liwen Motor is selected for the standard type.













Motor: First-line brand Yong ‘a Motor is selected for the advanced type.

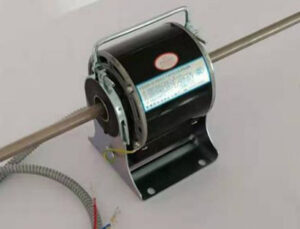

The stiffening process of the motor plate increases the strength of the sheet metal, the bending part is stiffened longitudinally, and the surrounding reinforcement ribs are added to the motor mounting hole, which greatly improves the stability of the motor.









Longitudinal stiffener， Fan stiffener

Motor surround reinforcement rib

Surround reinforcement ribs for motor mounting holes

Motor board, thickness 1.0mm

The motor board bears the vibration of the fan during operation, so the strength of the motor board is very important.

The air outlet of the fan coil is widened, and the same model is 5CM wider than other products. The purpose is to enlarge the discharge plenum and reduce the noise generated by the wind.

Technical Data

Model			FP34	FP51	FP68	FP85	FP102	FP136	FP170	FP204	FP238
Air Flow    CMH			340	510	680	850	1020	1360	1700	2040	2380
Cooling Capacity    W			1800	2700	3600	4500	5400	7200	9000	10800	12600
Heating Capacity   W		Water inlet temperature 60℃	2700	4050	5400	6750	8100	10800	13500	16200	18900
		Water inlet temperature 45℃	1800	2700	3600	4500	5400	7200	9000	10800	12600
Power   W		12pa	36	50	60	74	93	130	147	183	221
		30pa	43	57	70	84	105	151	169	206	245
		50pa	48	64	81	97	114	169	204	243	291
Noise   dB(A)		12pa	37	39	41	43	45	46	48	50	52
		30pa	40	42	44	46	47	48	50	52	54
		50pa	42	44	46	47	49	50	52	54	56
Water Resistance  kpa			30	30	30	30	40	40	40	40	50
FCEERw/w		12pa	46	49	54	54	51	49	53	51	48
		30pa	39	43	47	49	45	43	47	46	44
		50pa	35	39	41	43	42	38	40	40	38
FCCOPw/w	60℃	12pa	68	73	81	82	76	73	79	77	72
		30pa	58	65	70	73	68	64	70	69	66
		50pa	53	59	61	64	63	58	60	60	57
	45℃	12pa	46	23	54	54	51	49	53	51	48
		30pa	39	20	47	49	45	43	47	46	44
		50pa	35	18	41	43	42	38	40	40	38

fan coil unit factory Drawing

Type	FP34	FP51	FP68	FP85	FP102	FP136	FP170	FP204	FP238
Total length(mm)	750	855	955	1050	1150	1360	1660	1865	2060
Length of air outlet(mm)	450	580	650	760	900	1100	1350	1560	1755
Length of hoisting holes(mm)	480	610	680	790	930	1130	1380	1580	1780
