190mm ultra thin suspending fan coil unit Built-in water tray, no corrosion, no deformation EVA thermal insulation cotton to prevent condensation DC Brushless motor
Voltage | 220V-240V |
---|---|
Air Flow | 690m³/h-1745m³/h |
Cooling Capacity | 3.6KW-9.0KW |
Heating Capacity | 5.4KW-13.5KW |

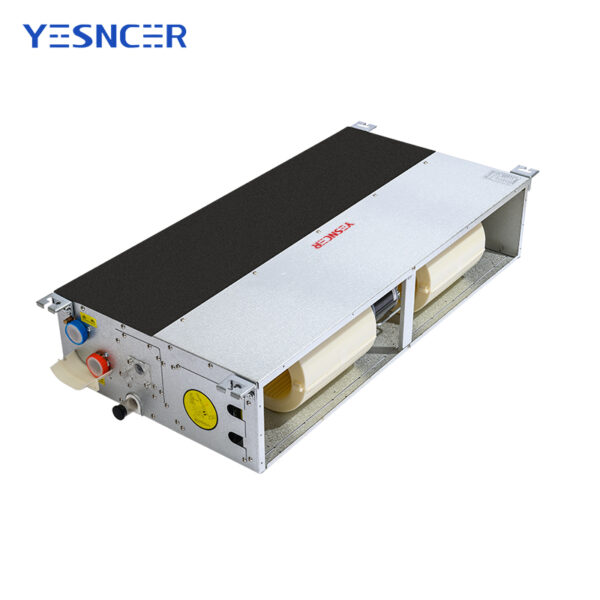

190mm ultra thin suspending fan coil unit
Built-in water tray, no corrosion, no deformation
EVA thermal insulation cotton to prevent condensation
DC Brushless motor
Applications With the rise of various buildings, Various decoration conditions have also become diversified, The ceiling space limits some rooms, and There are also requirements for the thickness of fan coil units. Ultra-thin horizontal concealed fan coil units are aimed at such customers.
3 rows, 24 copper pipes
Only 18.8cm thick, thinner than standard fan coil units 45-100mm。
ABS fan, ultra-thin horizontal concealed fan coil units running noise is low
It integrates a fan coil unit and intake plenum, the default mode is with a straight intake.
Working principleThe function of a fan coil unit is to cool or heat indoor air or outdoor mixed air through the surface cooler and then send it into the room so that the indoor air temperature can be lowered or raised to meet people's comfort requirements. Cold (hot) medium water in the coil pipe is supplied centrally by the machine room. Product Details
The motor of Fan Coil Unit: Changzhou Liwen motor, thickened shock absorption on both sides and stable operation
Lug: Hang the whole unit
Fan of Fan Coil Unit: ABS fans, anti-corrosion, anti-weathering, long service life. Good airflow design, low running noise of the machine.
Drain pan: Contain condensed water discharged from refrigeration, and stick rubber and plastic to keep warm.
Fan Coil Unit Motor board: Galvanized steel plate with a thickness of 1.0mm, reinforced to increase the hardness of sheet metal.
Fan Coil Condensor: High-density hydrophilic aluminum foil of fan coils, pure copper pipeline, mechanical tube expanding process.
Junction box: Built-in wiring terminal, convenient wiring
Condensate drain pipe: DN20 outer wire
Inlet pipe: DN20 inner wire, enlarged copper head
Outlet pipe: DN20 inner wire, enlarged copper head
Inlet and outlet pipelines: Four-in and four-out, the designed water resistance conforms to GB/T19232, and the heat exchange efficiency is high.
Technical Data
Type |
FP68 |
FP102 |
FP170 |
Airflow m³/h |
690 |
1085 |
1745 |
Motor power W |
12 |
25 |
40+40 |
Quantity of Motor |
1 |
1 |
2 |
Quantity of Fan |
2 |
2 |
4 |
Power W |
20 |
37 |
130 |
Noise dB(A) |
36 |
47 |
47.5 |
Size mm |
910*495*200 |
1170*495*200 |
1610*495*200 |
Air outlet static pressure |
12pa |
||
Weight kg |
16 |
19.9 |
28.4 |
Length of condensor |
650mm |
913mm |
1353mm |
Width of condensor |
200 |
||
Thickness of condensor |
65 |
||
Copper |
3 rows |
||
Water pipe |
4 in 4 out |
||
Diameter of copper tube |
φ9.52mm |
||
Copper tube thickness |
0.26mm |
||
Aluminum foil thickness |
0.105mm |
||
Fin spacing |
1.3mm |
||
Panel material |
0.8mm galvanized sheet |
Drawing
Type |
Total length A |
Unit length B |
Length of air outlet C |
Lug spacing D |
FP68 |
910mm |
822mm |
650mm |
870mm |
FP102 |
1170mm |
1085mm |
910mm |
1130mm |
FP170 |
1610mm |
1525mm |
1350mm |
1570mm |
